Concours 14 ECU Flash

Kawasaki Concours 1400 ECU Flash

Kawasaki ZG 1400 Concours ECU Flash

Kawasaki GTR 1400 Concours ECU Flash







We wake up the ZX14 hidden in your ultimate sports tourer !!

Below you will find the most straightfoward & transparent dyno comparisons for this bike anywhere on the web !!
There is quite a bit of information here, so relax, pull up a chair, read slowly, follow the links, and enjoy !!

Ivan's® ECU flash for: Kawasaki Concours 14 models - $350.00
Concours 14 / Concours 1400 / ZG1400 / GTR1400

Ivan's® ECU flash for: Kawasaki GTR1400 models - $350.00

Concours 14 / Concours 1400 / ZG1400 / GTR1400

2008 - 2009 Kawasaki Concours 14 ECU Flash - Available now !!
2010 - 2014 Kawasaki Concours 14 ECU Flash - Available now !!

2015 - 2017 Kawasaki Concours 14 ECU Flash - Available now !!


My ECU tuning philosophy and more ECU info can be found on this page: ECU PAGE

Testimonials for this product can be found on TESTIMONIALS PAGE

When sending your ECU, please print and fill out
CONCOURS 14 ECU form

I will contact you for your payment after I receive your ECU.

Not sure which box under your seat is your ECU?
CLICK HERE


More than 2 years of research and development has been invested into my Concours 14 programming !!


___________________________________________________________________________________________________



My Kawasaki Concours 14 ECU programming (Re-Flash) includes the following:



1) Fix all fueling problems inside the ECU.

(The ones that cannot be fixed with an external fuel tuner or other commercially available methods)
a) All gear dependent maps fixed
b) Main fuel tables (A/n) - adjusted specifically for your exhaust at all active throttle positions.
c) Vacuum tables (MAP)- adjusted specifically for your exhaust in all active areas.
d) Emissions compliant sub-routines that affect driveability - turned off.

e) All system response delays (detuning items) - turned off.
f) Acceleration enrichment thoroughly tested and re-adjusted for perfect response.
g) Update air temperature correction settings in 2014 and older models for better fuel mileage in cold weather.
h) Optimize injector timing for best power, response, mileage and combustion efficiency.
i) O2 sensors disabled - No need to unplug, or can be removed if desired.
j) Ram air compensation is disabled during dyno tuning, then re-enabled afterwards to ensure proper fueling on the road.


Includes fueling changes specific to your exhaust !!
External fuel tuner not needed - just plug in and go !!



2) Disable fuel cut - ie; Jerky throttle - (ours exclusively)

Don't know what "fuel cut" is? - CLICK HERE

Concours 14 Fuel Cut demonstration videos here:

Enabled: https://www.youtube.com/watch?v=Ue4SKOcHSUk
Live datalog
https://www.youtube.com/watch?v=wgBznc8yXJc

Disabled:
https: https://www.youtube.com/watch?v=0jrDHTcHwN4
Live datalog Disabled: https://www.youtube.com/watch?v=7i2vCGnyuGk

a) Engine stays running when the throttle is closed.
With stock ECU programming, the injectors are not running when you decel.
(please see the demonstration videos above)

b) Gets rid of poor, imprecise throttle transitions from closed throttle.

c) Eliminates all feelings of driveline lash and jerky, delayed throttle response.

d) Changing gears is dramatically improved. Without fuel cut disabled, there is no "neutral throttle"
This is the direct cause of your touchy, jerky throttle because the engine isn't running during decel

e) Dramatic improvement upon re-application from closed throttle (in all riding conditions).
(Throttle re-application response feels like our old carbureted bikes used to feel)

f) No need for a different throttle tube ratio to try to prevent jerky response.
(which it cannot do anyway)

g)
Gets rid of annoying popping and banging when re-applying the throttle from closed.

3) Close AIS valve electronically

No need for block-off plates for air injection system
No popping on decel !!
No hoses to plug - Just plug in your ECU and go !!

4) Cooling Fan comes on at 195 degrees and goes off at 186

Helps keep engine cooler when you are stuck in traffic.

5) Reprogram sub throttles for best response and to remove power restrictions

a) This allows a more sensitive throttle that is easy to control.

b) Allows all of the 1400 engine's available power - whenever you ask for it.

c) Gives immediate engine response to the throttle with no restrictions.


d) Low rpm power is dramatically improved, while preserving fuel economy.

e) Response delay filters turned off - part of original detuning

6 ) Complete custom re-curve of ignition timing

a) Set main timing tables for maximium power and driveability across the entire rpm range and all throttle positions.
This also helps provide better fuel economy, and less vibration when cruising and moderate acceleration.

b) All gear dependent maps equalized and adjusted for best power and fuel economy.

c) All emissions compliant /detuning sub-routines turned off.


Reprogram VVT system for best power and fuel economy -

CLICK HERE TO SEE MY VVT PAGE FOR DETAILS AND VVT FUNCTION DESCRIPTION !!


Raise rev-limiter 500 rpm - Optional
(This is optional, and can be left out if you prefer - just indicate it on our Concours 14 form when you send us your ECU)

With my programming which includes our VVT cam timing adjustments, the Concours 14 is still making good power until 10,500 rpm
(as can be seen in our dyno charts below.)

Raising the limiter on this engine (500 rpm) up to 10,500 rpm allows the power to continue with my ecu programming.

7) Reduced heavy engine braking on decel.
a) M
ore relaxed gear changes and throttle modulation at all speeds.
b) Chassis is more stable because bike doesn't pitch back and forth on it's suspension when throttle is closed and re-applied.
c) More stability when entering a turn.
d) Slowing down is relaxed and natural feeling... Not like you just hit the brakes.

8)
Improved fuel economy
50+ mpg on this model when riding modestly

9)
Reduced running temperatures
Coolant temps average appx 25 degrees cooler than with stock programming
Dramatic reduction of heat flow from radiator that cooks you while riding in traffic

10) All power & speed limiters removed

11) All driveability inhibitors removed
Concours 14 engine revs instantly, and offers fantastic fuel economy too !!

12) Free updates when/if we make improvements.
(shipping not included)

12a) Free updates if you change your exhaust.

(shipping not included)

13) Return your ecu back to stock at no charge for any reason.
(shipping not included)

14) Anything that compromises performance and/or driveability is eliminated.

Includes fueling changes specific to your exhaust
External fuel tuner not needed - just plug in and go !!



All testing and tuning was done in house on my personal ZG1400 Concours shown above !!


Dyno tuning not necessary !!

We can reprogram for all markets worldwide !!


ECU reprogramming may not comply with federal safety/emission laws !!
ECU reprogramming may not comply with your warranty !!



See my Concours 14 Dyno Charts Below
If you need help understanding these charts or anything else on this page,
Please don't hesitate to give us a call - We are happy to speak with you in person and help you.

My charts for this bike are all redone with my new dyno.


All ECU tuning files for the Concours 14 have been updated as well.

All dyno tests performed with 92 octane, 10% ethanol premium pump fuel with no additives


Stock Exhaust Result


All Stock Concours 14 ECU vs. Ivan's ECU programming - This test shown with stock exhaust

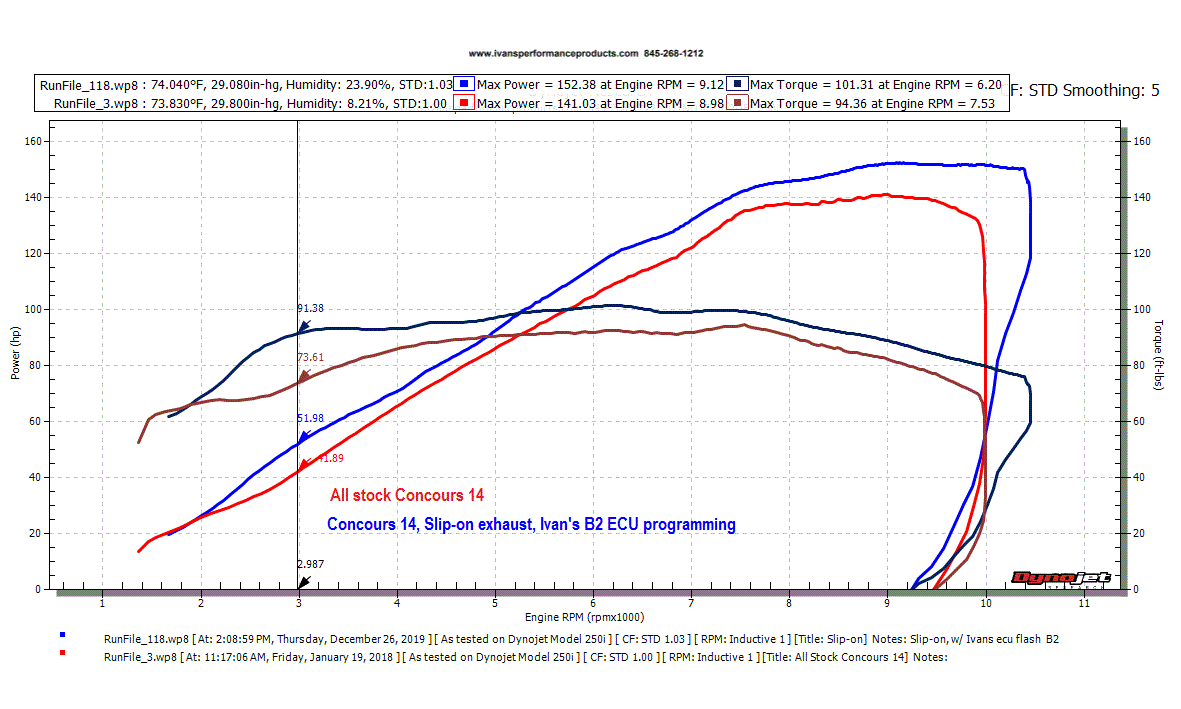

Slip-on Test Results


Adding a slip-on exhaust to this bike adds a significant amount of power above 5500 rpm.




Adding Ivan's ECU programming to the bike just releases all the potential that this engine has,
and adds 11 ft/lb of torque at 3000 rpm, 4 hp at peak, and another 1000 rpm of "hard pull" to the powerband when you want it.

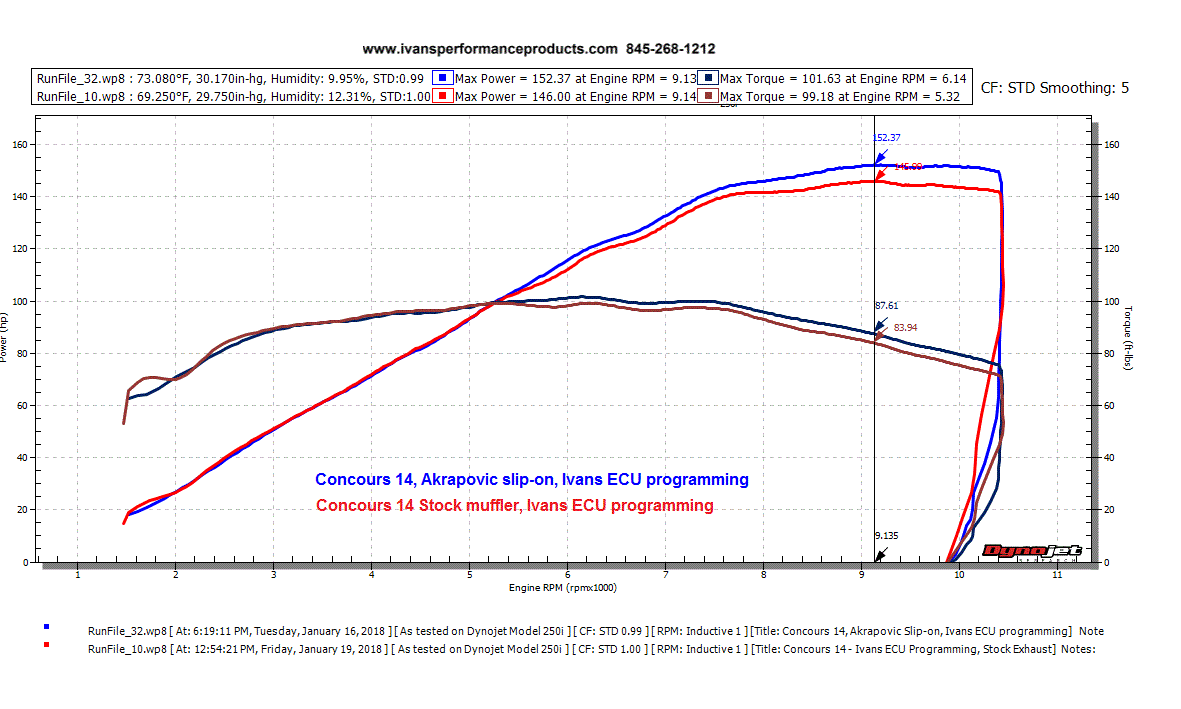

Stock muffler vs. slip-on...... both w/Ivan's ECU programming

This chart is to show that gains from changing the muffler are basically the same, flashed or not !!
Both of these runs have the fueling corrected because they both have my programming.







All stock vs. final slip-on result -

A 15 ft/lb torque increase at 3000 rpm, 12hp increase at peak, and 20hp at 10,000 rpm.







Full exhaust tests

Dyno video here:
https://youtu.be/N5W7wk_cerU



2006-2007 ZX14 header with dual slip-on mufflers

This setup is a great option if you desire
dual exhaust, and want a full exhaust that offers unrestricted performance.
The parts to make it fit can be found on Ebay from specialty manufacturers, or you can make them yourself.

This chart shows the ZX14 header/slip-on vs. stock header/slip-on - Both with my ECU programming
It gives up almost nothing at low rpm, and gains significantly above 5000 rpm...

Still not as much as a race exhaust system at peak, but a fantastic compromise between the two !!

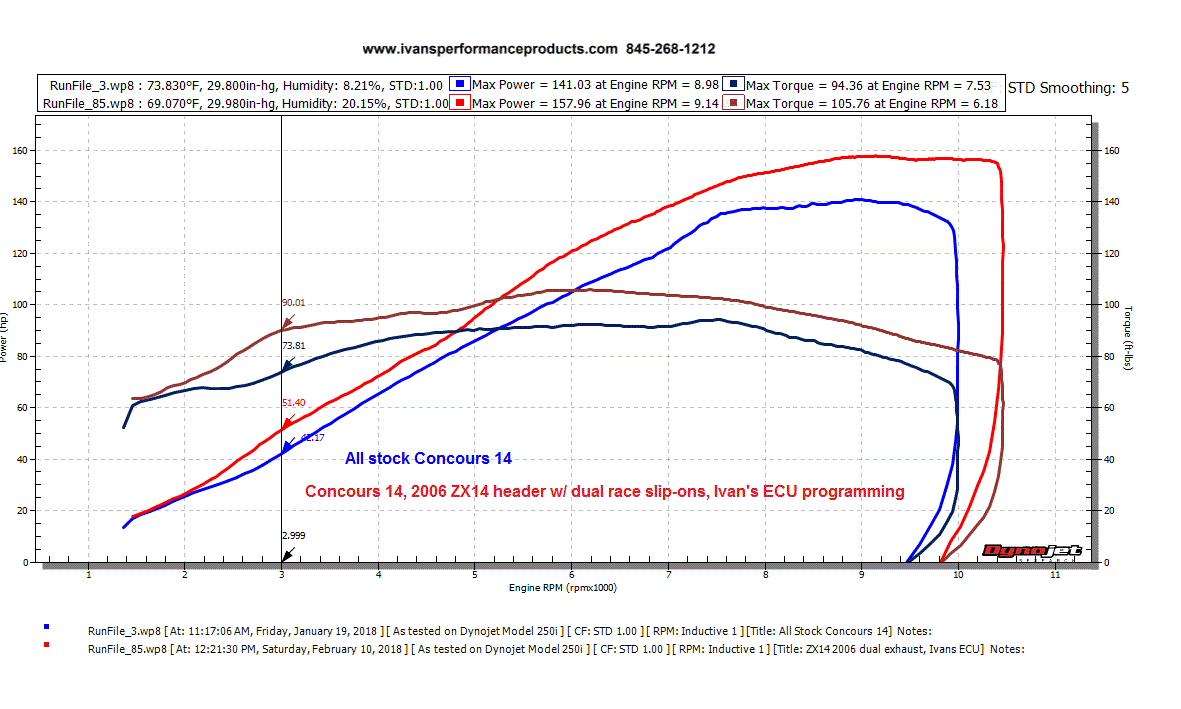

This chart shows the ZX14 header/dual slip-on/Ivan's ECU programming combination vs. an all stock C14
16ft/lb torque increase at 3000 rpm, 17hp at peak, and 26 hp at 10000 rpm .





Full Akrapovic 4-2-1 for ZX14 vs. Slip-on


This pipe adds another 8+ hp over the gains achieved with a slip-on exhaust with minor losses below 4000 rpm.
With my programming, significant power gains over the slip-on exhaust begin at 5000rpm.

Why did I choose to test this exhaust?
AreaP full exhaust is on order, and won't be in my hands until the end of February / early March 2018.

I had an extra Akrapovic ZX14 system left over from my ZX14 testing.... (
just curious wanting to test something)
As soon as I fitted it, I couldn't wait to get it on the dyno and see what she does.

I will be testing and tuning various exhaust options and adding them here.

The popular AreaP full exhaust for this bike will be tested and tuned as soon as it arrives.







100 hp and 100ft/lbs at 5200 rpm - Very impressive to say the least !!





New dyno reads the same as my old dyno....







All stock vs Akrapovic & Ivan's ECU programming final result - 29 HP gain at 10,000 rpm !!






More Full exhaust tests coming very soon !!

AreaP full exhaust - On order - appx delivery.... End of February/early March 2018
